Energy Harvesting Wireless Sensor Solutions with New EnOcean Dolphin Modules are Ideal for New Soltuions

The new EnOcean Dolphin modules STM 300, TCM 300 and TCM 320 bring bidirectionally communicating wireless sensors and actuators to Dolphin system architecture, which can transmit information as well as receive it. EDK 300 – the developer kit for Enocean Dolphin modules - gives the designer a fast and full overview of the Dolphin platform. Your benefits when developing new energy harvesting wireless sensor solutions add up to: simple integration, faster time to market, plus interoperability with other EnOcean energy-harvesting wireless switches, sensors and controls.

Dolphin modules for individual applications

A major component of Dolphin system architecture is the bi-directional STM 300, TCM 300 and TCM 320 wireless modules. These come in versions for a standard frequency of 868 MHz or
315 MHz, so they can work in applications worldwide.

The nucleus of the new modules is the large-scale-integrated EO30001 Dolphin chip. This features an energy converter interface and a complete RF transceiver for the wireless communication developed by EnOcean with its extremely short data telegrams.

STM 300 - ideal for bidirectional energy harvesting wireless sensors

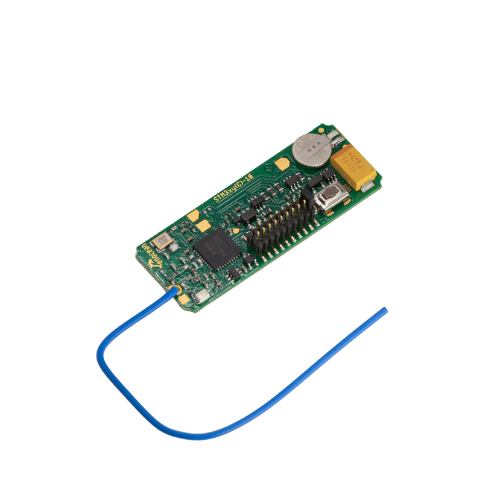

: STM 300

STM 300 features an energy harvesting interface for the implementation of self-powered products. The minimal standby power consumption makes it especially suitable for energy harvesting wireless solutions such as bidirectional temperature sensors, sensors in building services and innovative actuators. STM 300 can be powered by a solar cell, available in two sizes - ECS 300 and ECS 310.

TCM 300/ TCM 320 – ideal for programmable system components

: TCM 300/ TCM 320

TCM 300 and TCM 320 transceiver modules are the ideal building block for continuously powered components such as flush-mounted actuators or gateways. The modules command out-of-the-box switching, dimming, repeating and gateway functionalities. If basic configurations are inadequate, the easy-to-handle DolphinAPI development environment enables OEMs to create extra functionality for integration in their applications.

Broad integration base

Product manufacturers from diverse sectors can simply integrate the new modules in their product ranges. EnOcean technology enables speedy development and creation of new wireless solutions in building services, in industrial and numerous other applications. Standardized sensor profiles enable interoperability of the resulting products. Devices from different manufacturers can then communicate and cooperate with one another in one and the same system. The new platform remains backward-compatible with all earlier unidirectional, self-powered wireless switches, sensors and actuators in EnOcean technology.

Advantages at a glance

Maintenance-free sensor solutions through energy harvesting
EnOcean is the wireless standard in building automation
Bidirectional communication – also with self-powered sensors
Self-powered actuators (e. g. heating radiator valve control)
Easy to integrate
Faster time-to-market
Interoperability of end-products
Easy Programming of customer specific software

The fastest way into energy harvesting wireless sensor solutions

: EDK 300

EDK 300 gives the developers fast and full overview of the powerful Dolphin platform. In next to no time, companies are able to develop their own energy-autonomous applications for building automation and many other purposes – assuring themselves of a competitive lead. The developer's kit supports the bidirectional STM 300, TCM 300 and TCM 320 modules, In addition to innovative wireless modules the developer's kit includes an evaluation board for TCM modules and one for STM, a self-powered PTM 200 wireless switch, two EOP 300 programming adapters plus a software CD with WinEtel, DolphinStudio and Keil uVision Trial.

Order now EDK 300 (for 868 MHz) / EDK 300C (for 315 MHz) from our sales partners.
Or contact us (form below), if you would you like to learn more about EnOcean EDK 300/ EDK 300C.
