Radio Configuration

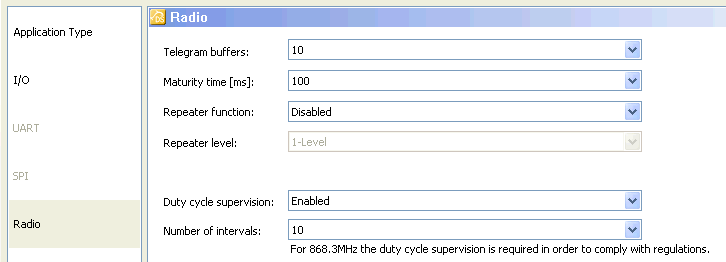

With the help of this page the Radio configuration for the chip or the module can be configured.

How to use:

select the correct TX Power, note the recommended power level is 6 dBm
select the number of telegram buffers - optimal is the setting 4 buffers, each buffer requires 30 bytes of XRAM so 10 buffers is 30*10 = 300bytes
select the maturity time, note the default value is 100, all other values should be used only for debug purposes
if your application should work also as a repeater, select the repeater and it's level

NOTE:
When using 868.3MHz in Europe be sure to set the Duty cycle supervision for line powered applications in order to comply with the regulations.
In ultra-low power applications make sure by design that 1% duty cycle is not exceeded.

For more information read the DolphinAPI Manual chapter Modules\Radio and the document EnOcean Radio Protocol.
