EOPX Postbuild Tools

Desription:

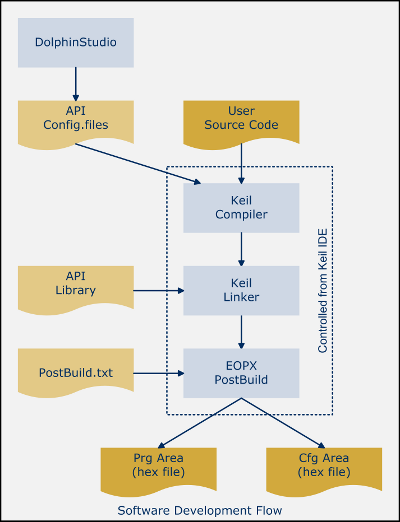

Postbuild tools are executed after compilation to set the BIST CRC in PrgArea, update API and App version in configuration area.

Options:

    -fprg and -fcfg option is required

    -fmap Specifies PrgFile.m51 map file.

Remarks:

• Postbuild tools only patch bytes in PrgArea and CfgArea file


• No programmer hardware is required to start postbuild tools

Scripting commands:

    setbist Calculate and set PrgSize in CfgArea and BIST CRC in PrgArea

    setversion Get version info from PrgArea.hex and update CfgArea

    writecfg Write data to CfgArea

    fillcfg Fill CfgArea with specified value

    hextotxt Convert HEX program file to TXT

Remarks:

• Scripting commands are not case sensitive.


• One command per line is allowed


• Lines with # at begin are ignored

Command options:

    setbist [first_data_obj]     if [first_data_obj] is specified, then -fmap must be set.

    fillcfg addr count value

    writecfg addr value [,value]

Sample postbuild.txt:

#This is sample postbuilt.txt

setBist

setVersion

fillCfg 0x70, 3, 0xFF

writeCfg 0x80,'A','B',0x12,12
