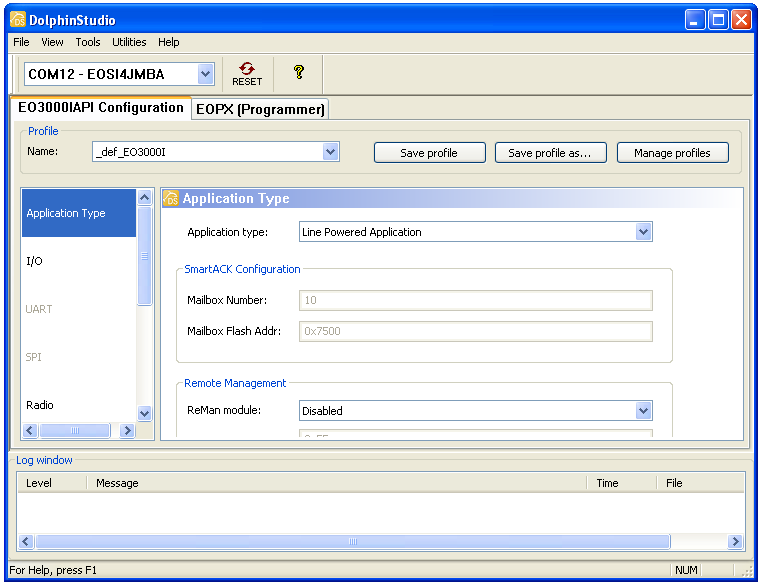

DolphinStudio

DolphinStudio is tool to support configuration and development on the EnOcean Dolphin Platform. It is mainly aimed to support the process of:

Firmware developing
Module configuration

Tool description

DolphinStudio offers to firmware developers the following functions (see more in EO3000I Configuration Section):

Configuration of Dolphin API modules.
Generation of all necessary configuration data to embed Dolphin API into your firmware project.
Calibration of important chip parameters (center frequency, timers etc.) (see Calibration Utilities)

For module configuration DolphinStudio enables (see more EOPX Programmer):

Configure selected values of programmed modules. (see Module Configuration)
Get Module and Chip information (see Module Information)

For general support Dolphin Studio provides tools for:

Programming of EO3000I chip flash memory (write hex files, verify program, erase memory etc.) (see Programmer)
Evaluate System Log from EO3000I API (see System Log)

Features

Built-in hex editor
Profile support for chip settings
Log of recent actions
