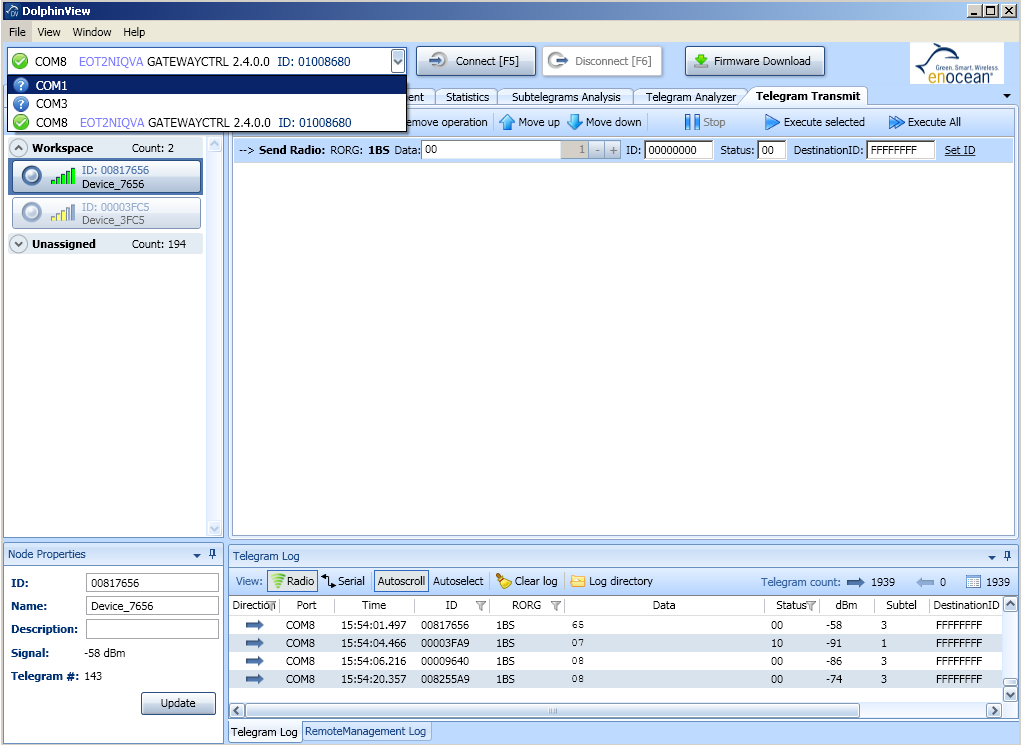

How To Connect

1. Select USB/COM port
3. Select Connect to transceiver
4. Select Disconnect to stop transceiving

If an firmware related error ocurrs download the latest GatewayControl Firmware to your module:

keep in mind that only TCM300 and TCM320 modules are supported

make sure the programmer is physically connected,

the correct connection is selected and

the "Disconnect" button is greyed out (DolphinView is not logging telegram data)

Then click the "Download Firmware" Button to ensure you are using a recent firmware version and follow the onscreen dialogs (keep in mind that only TCM300 and TCM320 modules are supported). This downloads a special version of the GatewayController firmware, that also sends debug information, into the connected TCM300/TCM320 module. For further information on possible error causes please consult the EnOcean Knowledge Base (http://www.enocean.com/en/knowledge-base/) and enter the search term "Dolphin View failed programming".
