DolphinView Overview
DolphinView is the successor of EnOcean’s telegram tracing software WinEtel. The main goal of DolphinView is to support OEM developers to integrate EnOcean’s self-powered radio technology into their applications.
DolphinView is available in two editions:
- DolphinView Basic - aimed for common users using USB300
- DolphinView Advanced - aimed for developers using EnOcean Developer Kit (EDK) or EnOcean Programmer Kit (EPK)
Typical use cases:
- Detailed telegram analysis for problem identification
- Subtelegram timing verification
- Telegram transmission simulation
- Remote Managment actor simulation
- Recommissioning testing for a device
- Verifcation and Creation for GP Messages
- SmartACK sensor/controller simulation
Main features:
- ESP3 serial protocol support
- Node list for easy device handling
- All types of radio telegrams supported inclusive UTE, VLD, SYS_EX, SmartACK
- Advanced filtering functionality

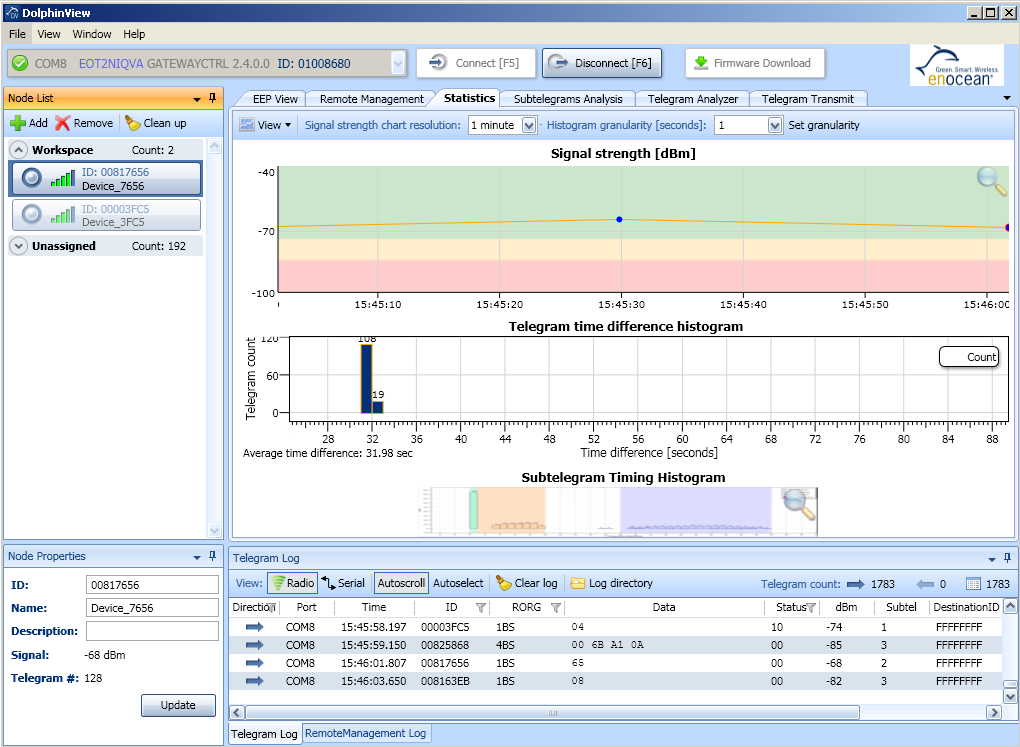

- Node statistics with signal strength chart and telegram time difference histogram
- Telegram logging to XML file format
- The current and future releases have an expiration date, this ensures that you are only using the most recent release.
- Detailed radio telegram analyzer online/offline, up to 100.000 telegrams offline1
- EEP2.6 support with data interpretation1
- GP1.0 support with data interpretation1
- Easy GP1.0 support for transmitting data1
- Basic Remote Commissioning Commands Support1
- Possibility to save/load DolphinView session settings to XML-File1
- Remote Management control and telegram data interpretation1
- Subtelegram interpretation (dBm, time slot, repeater level, recommended time slot)1
- Easy telegram transmission with GUI scripting functionality (supporting both BaseID and ChipID)1
- Real-time Network Utilization1
1 - this functionality is fully supported only in DolphinView Advanced.
Important Note!:
The provided RSSI should be used for a rough guess of the link quality.
The value is affected by multiple factors like housing, antenna, component tolerances and noise level.
Proper meseasurement equipment has to be used to get accurate RSSI (dBm) values.
ESP2 serial protocol is no longer supported, please download DolphinView 2.0.0.0
Please find all latest EnOcean technical documents, articles and FAQs in our Knowledge Base: http://www.enocean.com/en/knowledge-base/
