The class to handle eoEEP_D21457. More...

#include <eoEEP_D21457.h>

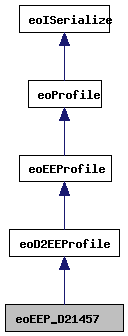

Inheritance diagram for eoEEP_D21457:

[legend]

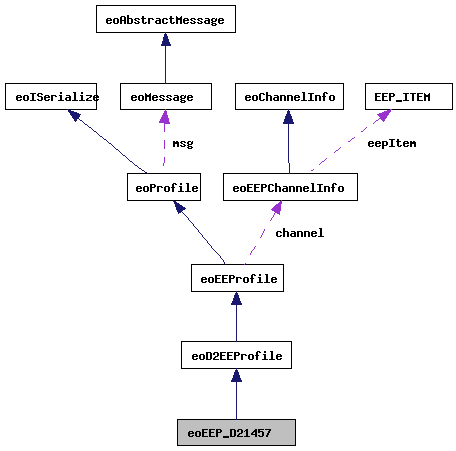

Collaboration diagram for eoEEP_D21457:

[legend]

Public Member Functions
eoReturn	SetType (uint8_t type)

	eoEEP_D21457 (uint16_t size=14)

Public Member Functions inherited from eoD2EEProfile
	eoD2EEProfile (uint16_t size=14)

virtual eoReturn	CreateTeachIN (eoMessage &m)
	Generates an EEP Telegram(only not chained supported!!1) More...

virtual eoReturn	SetCommand (uint8_t cmd)

Public Member Functions inherited from eoEEProfile
	eoEEProfile (uint16_t size=4)

virtual eoReturn	GetValue (CHANNEL_TYPE type, float &value)
	Gets the Value as Floating Point. More...

virtual eoReturn	GetValue (CHANNEL_TYPE type, uint8_t &value)
	Sets the Value using a unsigned integer. More...

virtual eoReturn	GetValue (CHANNEL_TYPE type, uint32_t &value)

virtual eoReturn	GetValue (CHANNEL_TYPE type, uint8_t &value, uint8_t subFlag)
	Gets the Value as unsigned integer. More...

virtual eoReturn	GetValue (CHANNEL_TYPE type, uint32_t &value, uint8_t subFlag)

virtual eoReturn	GetValue (CHANNEL_TYPE type, uint64_t &value, uint8_t subFlag)

virtual eoReturn	GetValue (CHANNEL_TYPE type, float &value, uint8_t subFlag)
	Gets the Value as Floating point. More...

virtual eoReturn	SetValue (CHANNEL_TYPE type, float value)
	Sets the Value using a Floating Point. More...

virtual eoReturn	SetValue (CHANNEL_TYPE type, uint8_t value)
	Sets the Value using a uint8_t. More...

virtual eoReturn	SetValue (CHANNEL_TYPE type, uint32_t value)

virtual eoReturn	SetValue (CHANNEL_TYPE type, float value, uint8_t subFlag)
	Gets the Value as a float. More...

virtual eoReturn	SetValue (CHANNEL_TYPE type, uint8_t value, uint8_t subFlag)
	Gets the Value as unsigned integer. More...

virtual eoReturn	SetValue (CHANNEL_TYPE type, uint32_t value, uint8_t subFlag)

virtual eoReturn	SetValue (CHANNEL_TYPE type, uint64_t value, uint8_t subFlag)
	Sets the Value as a 64-bit. More...

virtual eoChannelInfo *	GetChannel (CHANNEL_TYPE type, uint8_t subType)

virtual eoChannelInfo *	GetChannel (CHANNEL_TYPE type)

virtual eoChannelInfo *	GetChannel (uint8_t channelNumber)

virtual eoReturn	GetSubTypeChannel (CHANNEL_TYPE type, std::vector< eoEEPChannelInfo *> &vector)

virtual uint8_t	GetChannelCount () const

Public Member Functions inherited from eoProfile
	eoProfile (uint16_t size=0)

virtual bool	operator== (const eoProfile &othProfile) const

virtual bool	operator!= (const eoProfile &othProfile) const

virtual bool	IsSecDData (const eoMessage &message)

virtual void	ClearValues ()

virtual eoReturn	Create (eoMessage &m)
	Generates an EEP Message. More...

virtual eoReturn	Parse (const eoMessage &msg)
	Parses a msg using learned in Profile from Device. More...

virtual uint8_t	Serialize (eoArchive &a)
	Serialization Function which will be called by the eoStorageManager. More...

eoReturn	SetManufacturer (uint16_t manufacturerID)

Additional Inherited Members
Public Attributes inherited from eoProfile
uint8_t	rorg
	R-ORG.

uint8_t	func
	Func.

uint8_t	type
	Type.

uint16_t	manufacturer
	Manufacturer.

Static Protected Member Functions inherited from eoEEProfile
static void	CopyItemToChannel (eoEEPChannelInfo &channel, EEP_ITEM const *item)

Static Protected Member Functions inherited from eoProfile
static float	ScaleFromRAW (uint32_t rawValue, uint32_t rangeMin, uint32_t rangeMax, double scaleMin, double scaleMax)
	Creates floating Point from Raw Value. More...

static uint32_t	ScaleToRAW (float value, uint32_t rangeMin, uint32_t rangeMax, double scaleMin, double scaleMax)
	Creates Raw Value from a floating Point. More...

static eoReturn	GetRawValue (const eoMessage &msg, uint32_t &value, uint16_t offset, uint8_t size)
	Gives raw data Value from a Message. More...

static eoReturn	SetRawValue (eoMessage &msg, uint32_t value, uint16_t offset, uint8_t size)
	Inserts raw data Value in a message. More...

Protected Attributes inherited from eoEEProfile
eoEEPChannelInfo *	channel
	ChannelInfo list for direct Access to channels.

uint8_t	channelCount
	Number of channels.

Protected Attributes inherited from eoProfile
eoMessage	msg
	helper function to convert bits

Static Protected Attributes inherited from eoProfile
static const uint8_t	maskArray [8]
	Mask array.

Detailed Description

The class to handle eoEEP_D21457.

Allows the user to handle eoEEP_D21457 profile.

For Message Data exchangeDirection: from. Addressing: broadcast. Communication trigger: event_time_trigger. Trigger description: Change of occupancy status. Timing description: Periodically with a default period of 300 seconds (configurable) the following channels are available

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::S4 - Status
1	E_STATE	uint	::S3 - Status
2	E_STATE	uint	::S2 - Status
3	E_STATE	uint	::S1 - Status
4	E_STATE	uint	::V - Voc
5	S_CONC	float	::VCH0 - Voc
6	E_STATE	uint	::O8 - Occupancy
7	E_STATE	uint	::O7 - Occupancy
8	E_STATE	uint	::O6 - Occupancy
9	E_STATE	uint	::O4 - Occupancy
10	E_STATE	uint	::O4 - Occupancy
11	E_STATE	uint	::O3 - Occupancy
12	E_STATE	uint	::O2 - Occupancy
13	E_STATE	uint	::O1 - Occupancy
14	E_STATE	uint	::D4 - dimValue
15	S_PERCENTAGE	float	::DCH0 - dimValue
16	E_STATE	uint	::D3 - dimValue
17	S_PERCENTAGE	float	::DCH0 - dimValue
18	E_STATE	uint	::D2 - dimValue
19	S_PERCENTAGE	float	::DCH0 - dimValue
20	E_STATE	uint	::D1 - dimValue
21	S_PERCENTAGE	float	::DCH0 - dimValue
22	E_STATE	uint	::T - temp
23	S_TEMP	float	::TCH0 - temp
24	E_STATE	uint	::I - Illumination
25	S_LUMINANCE	float	::ICH0 - Illumination
26	E_STATE	uint	::SS - Sound Sensor
27	E_STATE	uint	::SSCH0 - Sound Sensor
28	E_STATE	uint	::H - humidity
29	S_PERCENTAGE	float	::HCH0 - humidity
30	E_STATE	uint	::CT4 - ColorTemperature
31	S_TEMP	float	::CCH4 - ColorTemperature
32	E_STATE	uint	::CT3 - ColorTemperature
33	S_TEMP	float	::CCH3 - ColorTemperature
34	E_STATE	uint	::CT2 - ColorTemperature
35	S_TEMP	float	::CCH2 - ColorTemperature
36	E_STATE	uint	::CT1 - ColorTemperature
37	S_TEMP	float	::CCH1 - ColorTemperature

Member Function Documentation

◆ SetType()

eoReturn eoEEP_D21457::SetType ( uint8_t type )

virtual

Sets and checks if the specified [EEP] type is supported

Parameters

type

Returns: eoReturn EO_OK or NOT_SUPPORTED

Reimplemented from eoProfile.
