SWI_AREA Union Reference

Structure to access configuration area. More...

#include <EO3100I_API.h>

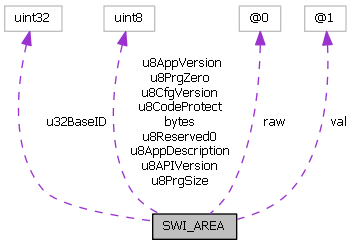

Collaboration diagram for SWI_AREA:

Data Fields
struct {
uint8   bytes [512]
}	raw
struct {
uint8   u8PrgSize
	Program size in FLASH pages (512 bytes) - indicates the last page where the program in FLASH is saved - offs:0x00.
uint8   u8PrgZero
	Program size, must be always 0x00 - offs:0x01.
uint8   u8Reserved0
	Reserved byte - offs:0x02.
uint8   u8CfgVersion
	Configuration Area Structure version - offs:0x03.
uint8   u8CodeProtect [16]
	Code protect bytes - offs:0x04.
uint8   u8APIVersion [4]
	EO3100I API version, Main,Beta.Alpha,Point - offs:0x14.
uint8   u8AppVersion [4]
	Application version, Main,Beta,Alpha,Point - offs:0x18.
uint8   u8AppDescription [16]
	Description - offs:0x1C.
uint32   u32BaseID [10]
	u8BaseID - offs:0x2C
}	val

---

Detailed Description

Structure to access configuration area.
