eoEEP_D24100 Class Reference

The class to handle eoEEP_D24100. More...

#include <eoEEP_D24100.h>

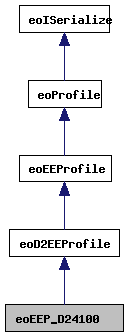

Inheritance diagram for eoEEP_D24100:

Collaboration diagram for eoEEP_D24100:

Public Member Functions
eoReturn	SetType (uint8_t type)
eoReturn	Parse (const eoMessage &msg)
	Parses a msg using learned in Profile from Device. More...
	eoEEP_D24100 (uint16_t size=14)
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint32_t value, uint8_t index)
virtual eoReturn	SetCommand (uint8_t cmd)
Public Member Functions inherited from eoD2EEProfile
	eoD2EEProfile (uint16_t size=14)
virtual eoReturn	CreateTeachIN (eoMessage &m)
	Generates an EEP Telegram(only not chained supported!!1) More...
Public Member Functions inherited from eoEEProfile
	eoEEProfile (uint16_t size=4)
virtual eoReturn	GetValue (CHANNEL_TYPE type, float &value)
	Gets the Value as Floating Point. More...
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint8_t &value)
	Sets the Value using a unsigned integer. More...
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint32_t &value)
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint8_t &value, uint8_t subFlag)
	Gets the Value as unsigned integer. More...
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint32_t &value, uint8_t subFlag)
virtual eoReturn	GetValue (CHANNEL_TYPE type, uint64_t &value, uint8_t subFlag)
virtual eoReturn	GetValue (CHANNEL_TYPE type, float &value, uint8_t subFlag)
	Gets the Value as Floating point. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, float value)
	Sets the Value using a Floating Point. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint8_t value)
	Sets the Value using a uint8_t. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint32_t value)
virtual eoReturn	SetValue (CHANNEL_TYPE type, float value, uint8_t subFlag)
	Gets the Value as a float. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint8_t value, uint8_t subFlag)
	Gets the Value as unsigned integer. More...
virtual eoReturn	SetValue (CHANNEL_TYPE type, uint64_t value, uint8_t subFlag)
	Sets the Value as a 64-bit. More...
virtual eoChannelInfo *	GetChannel (CHANNEL_TYPE type, uint8_t subType)
virtual eoChannelInfo *	GetChannel (CHANNEL_TYPE type)
virtual eoChannelInfo *	GetChannel (uint8_t channelNumber)
virtual eoReturn	GetSubTypeChannel (CHANNEL_TYPE type, std::vector< eoEEPChannelInfo *> &vector)
virtual uint8_t	GetChannelCount () const
Public Member Functions inherited from eoProfile
	eoProfile (uint16_t size=0)
virtual bool	operator== (const eoProfile &othProfile) const
virtual bool	operator!= (const eoProfile &othProfile) const
virtual bool	IsSecDData (const eoMessage &message)
virtual void	ClearValues ()
virtual eoReturn	Create (eoMessage &m)
	Generates an EEP Message. More...
virtual uint8_t	Serialize (eoArchive &a)
	Serialization Function which will be called by the eoStorageManager. More...
eoReturn	SetManufacturer (uint16_t manufacturerID)

Additional Inherited Members
Public Attributes inherited from eoProfile
uint8_t	rorg
	R-ORG.
uint8_t	func
	Func.
uint8_t	type
	Type.
uint16_t	manufacturer
	Manufacturer.
Static Protected Member Functions inherited from eoEEProfile
static void	CopyItemToChannel (eoEEPChannelInfo &channel, EEP_ITEM const *item)
Static Protected Member Functions inherited from eoProfile
static float	ScaleFromRAW (uint32_t rawValue, uint32_t rangeMin, uint32_t rangeMax, double scaleMin, double scaleMax)
	Creates floating Point from Raw Value. More...
static uint32_t	ScaleToRAW (float value, uint32_t rangeMin, uint32_t rangeMax, double scaleMin, double scaleMax)
	Creates Raw Value from a floating Point. More...
static eoReturn	GetRawValue (const eoMessage &msg, uint32_t &value, uint16_t offset, uint8_t size)
	Gives raw data Value from a Message. More...
static eoReturn	SetRawValue (eoMessage &msg, uint32_t value, uint16_t offset, uint8_t size)
	Inserts raw data Value in a message. More...
Protected Attributes inherited from eoEEProfile
eoEEPChannelInfo *	channel
	ChannelInfo list for direct Access to channels.
uint8_t	channelCount
	Number of channels.
Protected Attributes inherited from eoProfile
eoMessage	msg
	helper function to convert bits
Static Protected Attributes inherited from eoProfile
static const uint8_t	maskArray [8]
	Mask array.

Detailed Description

The class to handle eoEEP_D24100.

Allows the user to handle eoEEP_D24100 profile.

The following channels are available in command Get Command

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint |

The following channels are available in command Product Status | Channel Index | Channel Type | Type | Comment | |:----------—:|:---------—:|:-—:|:----—:| |0| E_COMMAND | uint | |1| E_STATE | uint | ::UAS1 - Unit Activity Status 14 |2| E_STATE | uint | ::UAS1 - Unit Activity Status 13 |3| E_STATE | uint | ::UAS1 - Unit Activity Status 12 |4| E_STATE | uint | ::UAS1 - Unit Activity Status 11 |5| E_STATE | uint | ::UAS1 - Unit Activity Status 10 |6| E_STATE | uint | ::UAS9 - Unit Activity Status 9 |7| E_STATE | uint | ::UAS8 - Unit Activity Status 8 |8| E_STATE | uint | ::UAS7 - Unit Activity Status 7 |9| E_STATE | uint | ::UAS6 - Unit Activity Status 6 |10| E_STATE | uint | ::UAS5 - Unit Activity Status 5 |11| E_STATE | uint | ::UAS4 - Unit Activity Status 4 |12| E_STATE | uint | ::UAS3 - Unit Activity Status 3 |13| E_STATE | uint | ::UAS2 - Unit Activity Status 2 |14| E_STATE | uint | ::UAS1 - Unit Activity Status 1 |15| E_STATE | uint | ::UAS0 - Unit Activity Status 0

The following channels are available in command Trigger Unit Operating State

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::TOS - Trigger Operating State

The following channels are available in command Unit Operating State

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::OS - Operating State

The following channels are available in command Set Unit Data

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::OS - Operating State |3| E_STATE | uint | ::SC - Switch control |4| E_STATE | uint | ::V - VTL |5| E_STATE | uint | ::FM - Fading Mode |6| E_STATE | uint | ::DL - Dimming Level |7| S_PERCENTAGE | float | ::DLCH0 - Dimming Level |8| E_STATE | uint | ::CT - Colour Temp |9| S_TEMP | float | ::CTCH0 - Colour Temp

The following channels are available in command Unit Status

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::OS - Operating State |3| E_STATE | uint | ::SC - Switch Control |4| E_STATE | uint | ::V - VTL |5| E_STATE | uint | ::FM - Fading Mode |6| E_STATE | uint | ::DL - Dimming Level |7| S_PERCENTAGE | float | ::DLCH0 - Dimming Level |8| E_STATE | uint | ::CT - Colour Temp |9| S_TEMP | float | ::CTCH0 - Colour Temp

The following channels are available in command Set Occupancy

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::O - Occupancy |3| E_STATE | uint | ::O - Occupancy

The following channels are available in command Presence Data

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::O - Occupancy |3| E_STATE | uint | ::O - Occupancy |4| E_STATE | uint | ::P - Presence

The following channels are available in command Environmental Data

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::NL - Noise Level |3| E_STATE | float | ::NLCH0 - Noise Level |4| E_STATE | uint | ::V - VOC |5| S_CONC | float | ::VCH0 - VOC |6| E_STATE | uint | ::I - Illumination |7| S_LUMINANCE | float | ::ICH0 - Illumination |8| E_STATE | uint | ::T - Temperature |9| S_TEMP | float | ::TCH0 - Temperature |10| E_STATE | uint | ::H - Humidity |11| S_PERCENTAGE | float | ::HCH0 - Humidity

The following channels are available in command Maintenance Data

Channel Index	Channel Type	Type	Comment
0	E_STATE	uint	::UI - Unit Index

|1| E_COMMAND | uint | |2| E_STATE | uint | ::OH - Operating Hours |3| E_STATE | uint | ::OHCH0 - Operating Hours |4| E_STATE | uint | ::OHA - Operating Hours Active |5| E_STATE | uint | ::OHACH0 - Operating Hours Active |6| E_STATE | uint | ::PC - Power Consumption |7| S_POWER | float| ::PCCH0 - Power Consumption |8| E_STATE | uint | ::EC - Energy Consumption |9| E_STATE | uint | ::ECCH0 - Energy Consumption

Member Function Documentation

Parse()

eoReturn eoEEP_D24100::Parse ( const eoMessage &  msg )

virtual

Parses a msg using learned in Profile from Device.

This function will parse the Message msg using the Profile Specific data

Parameters

msg	Message to parse

Returns

eoReturn EO_OK,NOT_SUPPORTED,NOT_IMPLEMENTED

Reimplemented from eoProfile.

SetCommand()

virtual eoReturn eoEEP_D24100::SetCommand ( uint8_t  cmd )

virtual

Sets and checks if the specified command is supported

Parameters

cmd

Returns

eoReturn EO_OK or NOT_SUPPORTED

Reimplemented from eoD2EEProfile.

SetType()

eoReturn eoEEP_D24100::SetType ( uint8_t  type )

virtual

Sets and checks if the specified [EEP] type is supported

Parameters

type

Returns

eoReturn EO_OK or NOT_SUPPORTED

Reimplemented from eoProfile.
