SmartServer IoT

SmartServer IoT is an extensible, multi-protocol IoT edge server that is ideal for monitoring and controls, energy management and data analytics applications in smart buildings, cities and factories.

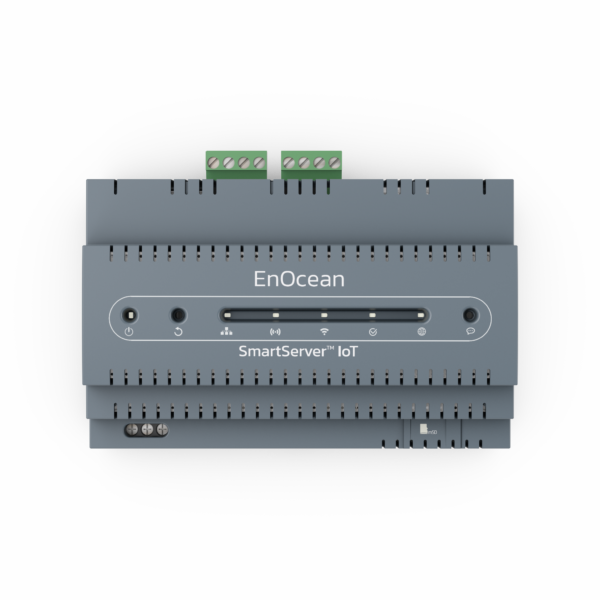

SmartServer IoT Edge Server
Description:

Open device and data integration platform for automation, analytics and action

SmartServer IoT is an extensible, multi-protocol IoT edge server that is ideal for monitoring and controls, energy management and data analytics applications in smart buildings, cities and factories. Its modern architecture creates an IoT-centric data fabric that quickly and securely delivers critical data and insights anywhere across edge networks. It also gives you the freedom to process data in a control network, edge or cloud infrastructure for limitless applications.

With this truly open and end-to-end industrial appliance, users can engineer, integrate and manage systems, implement automation sequences, and create custom applications and visualization without locking in user data. The platform is extensible to any connectivity or data standard, enabling an edge computing architecture that is autonomous, distributed, resilient, and secure.

With SmartServer IoT, system integrators and solution providers no longer need to pull together expensive point solutions and code custom applications from scratch. A simple-to-use web-based central management system (CMS) with integration and programming tools support deployment workflows in large scale installations.

With a unique combination of an open standards-based approach along with end-to-end integration support, SmartServer IoT stands apart from every other edge server or gateway, enabling fast and efficient development and integration, transparent licensing, and straightforward support for system extensions.

SmartServer IoT Starter Kit

The SmartServer IoT Starter Kit is a fully assembled and pre-wired panel, packaged in a traveling case with custom foam interior, that is ideal for SmartServer IoT Partners. The panel includes a SmartServer IoT, U60 LON FT network interface and commonly-used open and interoperable IoT devices, and software libraries and configuration files are all available for download. The starter kit is used to demonstrate a multi-protocol network for SmartServer IoT training and presentations.

Article name:
SmartServer IoT
Ordering Code:
x
HS-Code:
x
Packaging Unit:
x
ECCN:
x
Features:
  • IoT Access Protocol (IAP™) based data fabric message bus architecture with open web service APIs in MQTT and REST standards
  • Integrated device drivers for open industrial IoT protocols including LON, BACnet and Modbus
  • Easy-to-use libraries for creating custom drivers for data and network communications in any IoT protocol
  • Built-in automation and controls services for scheduling, logging, alarming, connections and routing
  • Client interfaces for BMS (building management systems) and SCADA (supervisory control and data acquisition) systems via BACnet IP and OPC UA servers
  • Browser-based CMS (central management system) for defining, provisioning and managing data points and devices
  • Freely available planning and programming tools for simplifying creation of controls sequences and custom visualization
  • Compact, modular DIN form factor with USB interface for network and I/O expansions; rated for industrial environments
  • Integrated remote network interface (RNI) and routing with support for LON IP-852, LON FT, BACnet FT and LON TP-1250 interface modules with multi-channel support
  • Compatible with IzoT™ Net and LNS installation tools
Specifications:

Hardware and electrical specifications

  • 800 MHz ARM Cortex A9 processor
  • Linux operating system
  • Security: TLS with AES 128-bit encryption
  • Internal, real time clock
  • 2 GB DDR3L SDRAM
  • 8 GB eMMC flash memory
  • Memory expansion: 32GB Micro SD card (included)
  • Device supportUp to 1,000 total devices; 20,000 datapoints
  • Input voltage: 10.5-30VDC, 10W or isolated 12-30VAC, 12VA, 50/60Hz
  • Temperature range: -40°C to +65°C
  • Surge protection: EN 61000-4-5:2006, +/- 4KV
  • Form factor: DIN 43880 8TE

Wired interfaces

  • Gigabit Ethernet interfaces: 2 RJ-45 jacks for WAN and LAN, including LON IP-70 and IP-852, BACnet/IP and Modbus TCP
  • RS-485: 2 4-pin terminal blocks for Modbus RTU and other RS-485 communication (Pro EX model only)
  • Type A USB 2.0: 4 ports for local IoT network and I/O interfaces
  • Micro-B USB: 1 console port

External interface support

Supports up to 4 optional external interfaces, sold separately:

  • 75060R-30 U60 TP-1250 DIN USB Network Interface
  • 75060R-40 U60 FT DIN USB Network Interface
  • 75070R-70 U70 PL-20 DIN USB Network Interface
  • 41700-100 and 41700-110 IOX Expansion Module

Safety and compliance

  • FCC Part 15 Class B, EN55022 Class B, EN55024, CISPR 24 Class B, CISPR 32 Class B, VCCI Class B
  • CE, IC, and CCC
