STM 550 KIT
Batteryless and wireless IoT Multisensor
- Manufacturer:
- Easyfit by EnOcean
- Module Category:
- Easyfit by EnOcean
- Frequencies:
-
868 MHz EnOcean (Europe)
902 MHz EnOcean (North America)
928 MHz EnOcean (Japan)
2,4 GHz Bluetooth® (worldwide)
- HS-Code:
- 85269200
- Packaging Unit:
- Tray / Box (100 units)
- ECCN:
- EAR99
- Description:
STM 550 is an IoT multisensor module enabling the realization of energy harvesting wireless sensors communicating based on the EnOcean radio standard.
Key applications are wall-mounted or equipment-mounted sensor applications for the measurement of temperature, humidity, illumination or acceleration / orientation.

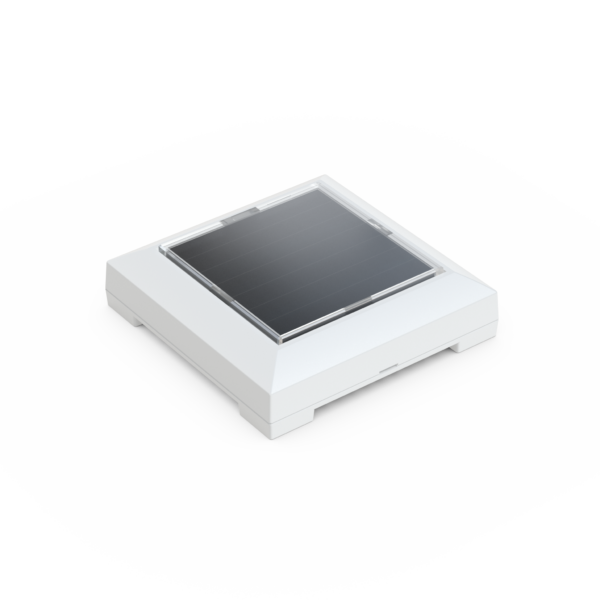

STM 550 KIT contains 100 units of the STM 550 multisensor module together with the required housing and assembly materials for the installation as finished product (EMSI).STM 550 can be configured via NFC using EnOcean Tool.
EnOcean Tool for iOS is available here: apps.apple.com/de/app/enocean-tool/id1497283202; and for Android here: https://play.google.com/store/apps/details?id=de.enocean.easytool
wifi
Frequencies
Wireless Standard
868 MHz EnOcean (Europe)
Article name:
STM 550 KIT
Ordering Code:
B6201-K516
STM 550 KIT
B6201-K516
902 MHz EnOcean (North America)
Article name:
STM 550U KIT
Ordering Code:
B6251-K516
STM 550U KIT
B6251-K516
928 MHz EnOcean (Japan)
Article name:
STM 550J KIT
Ordering Code:
B6261-K516
STM 550J KIT
B6261-K516
2,4 GHz Bluetooth® (worldwide)
Article name:
STM 550B KIT
Ordering Code:
B6221-K516
STM 550B KIT
B6221-K516
